〔SKR〕Linear Module

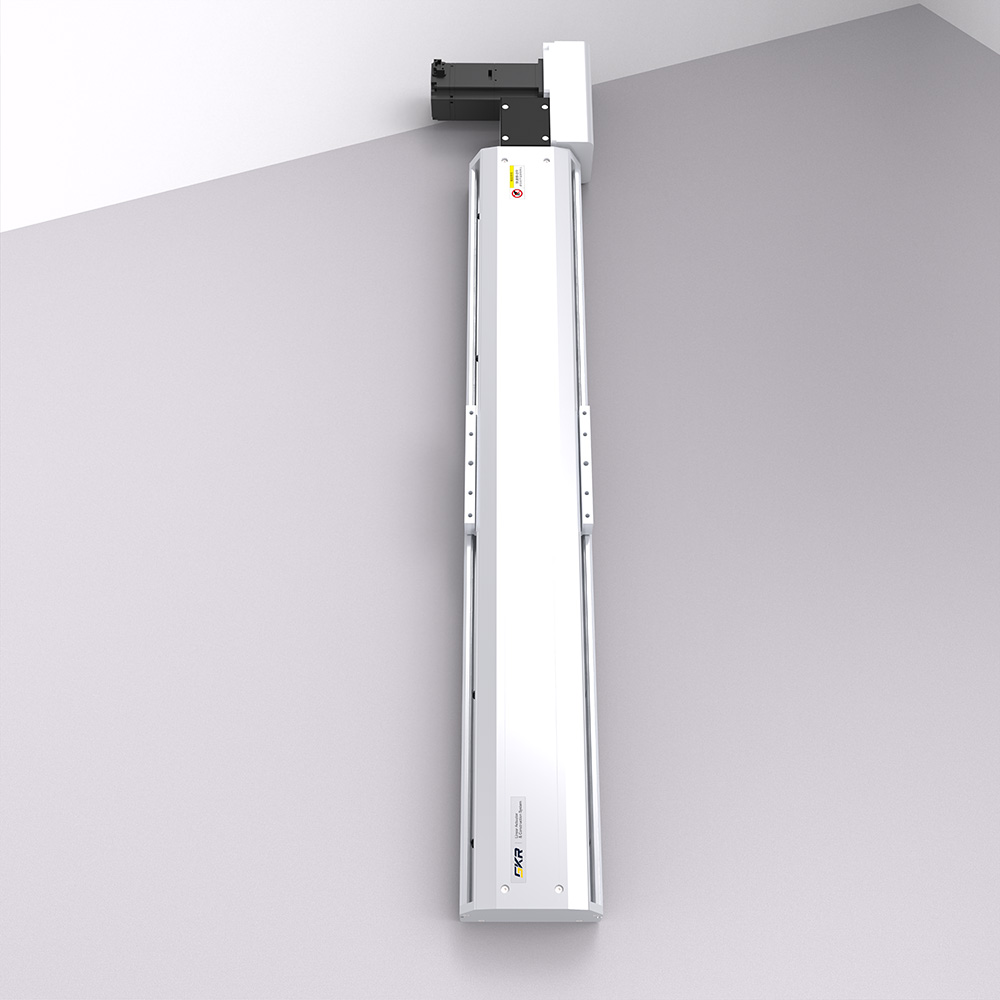

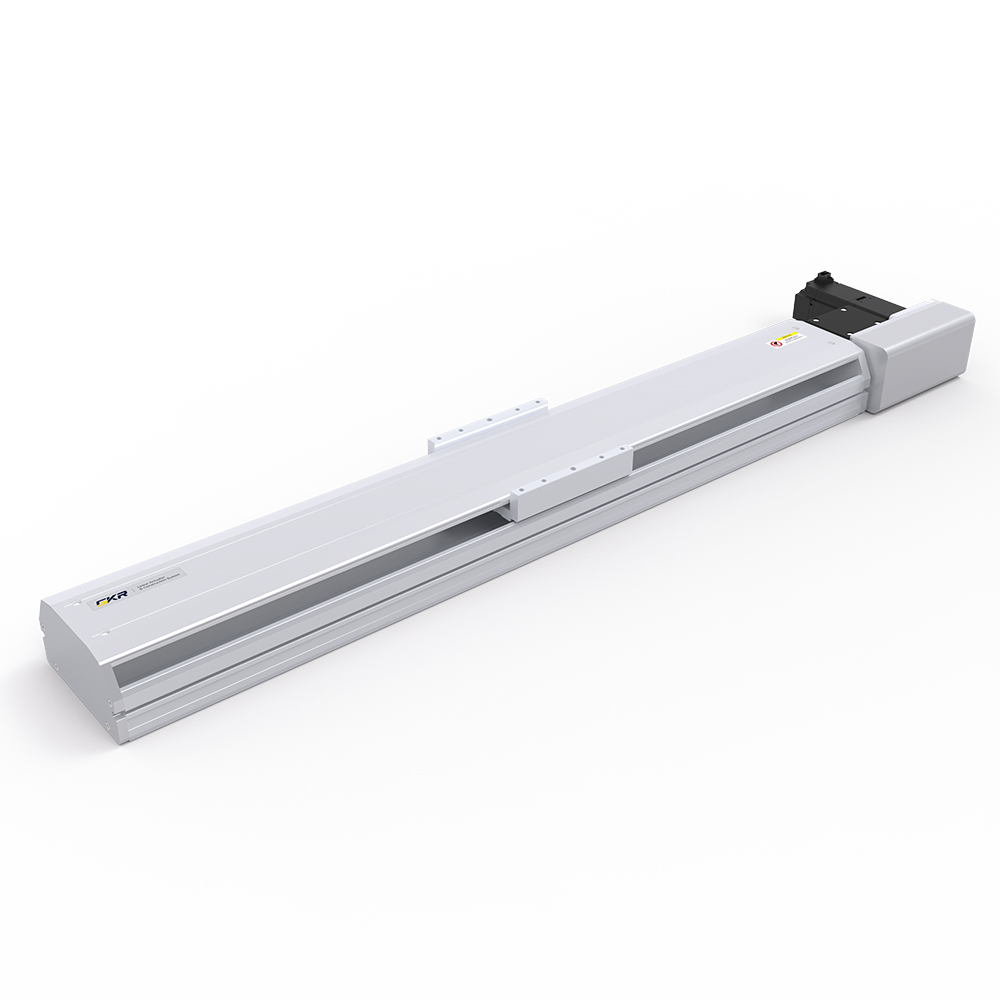

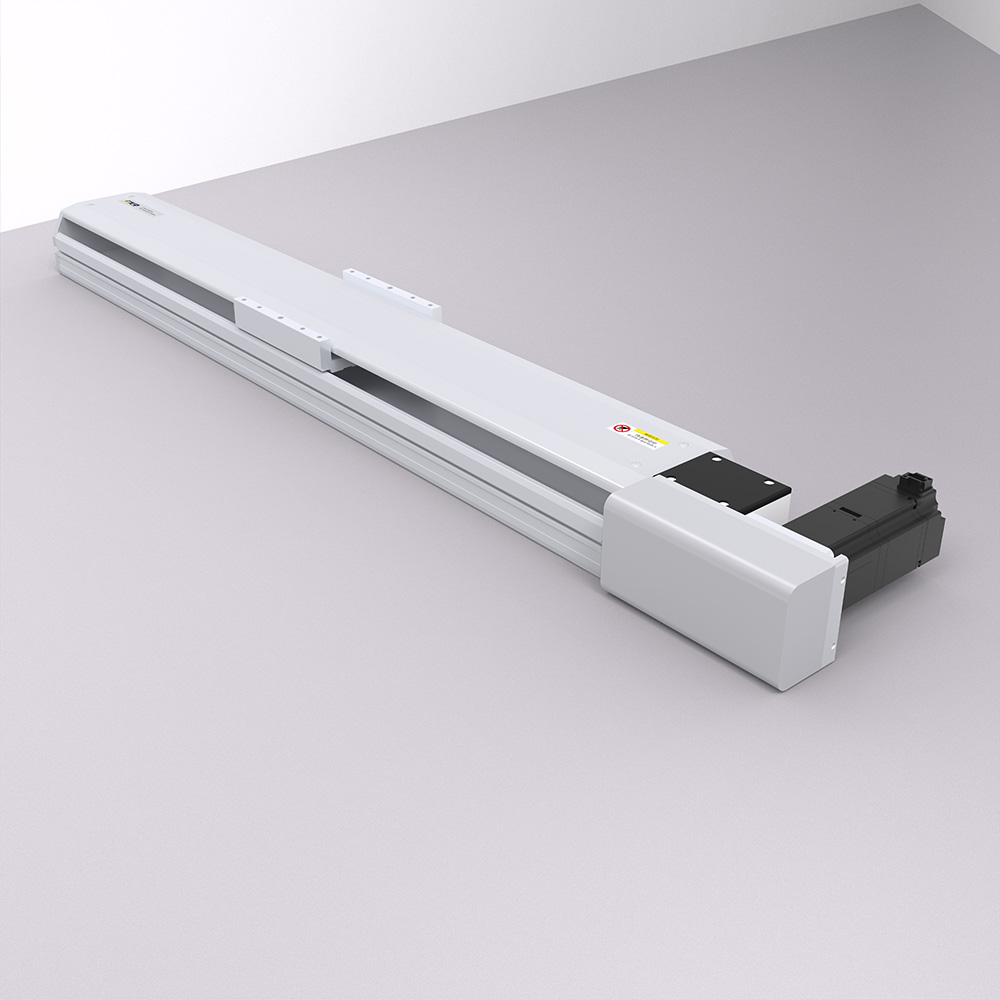

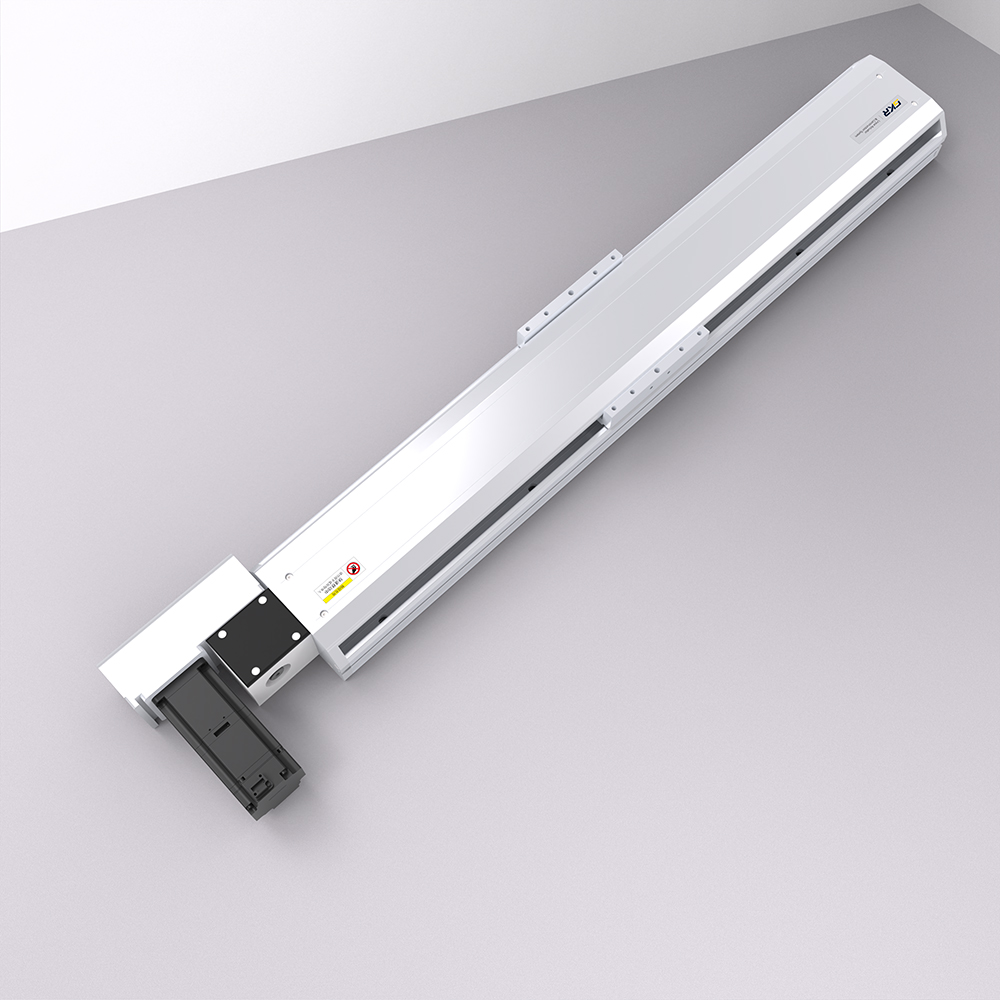

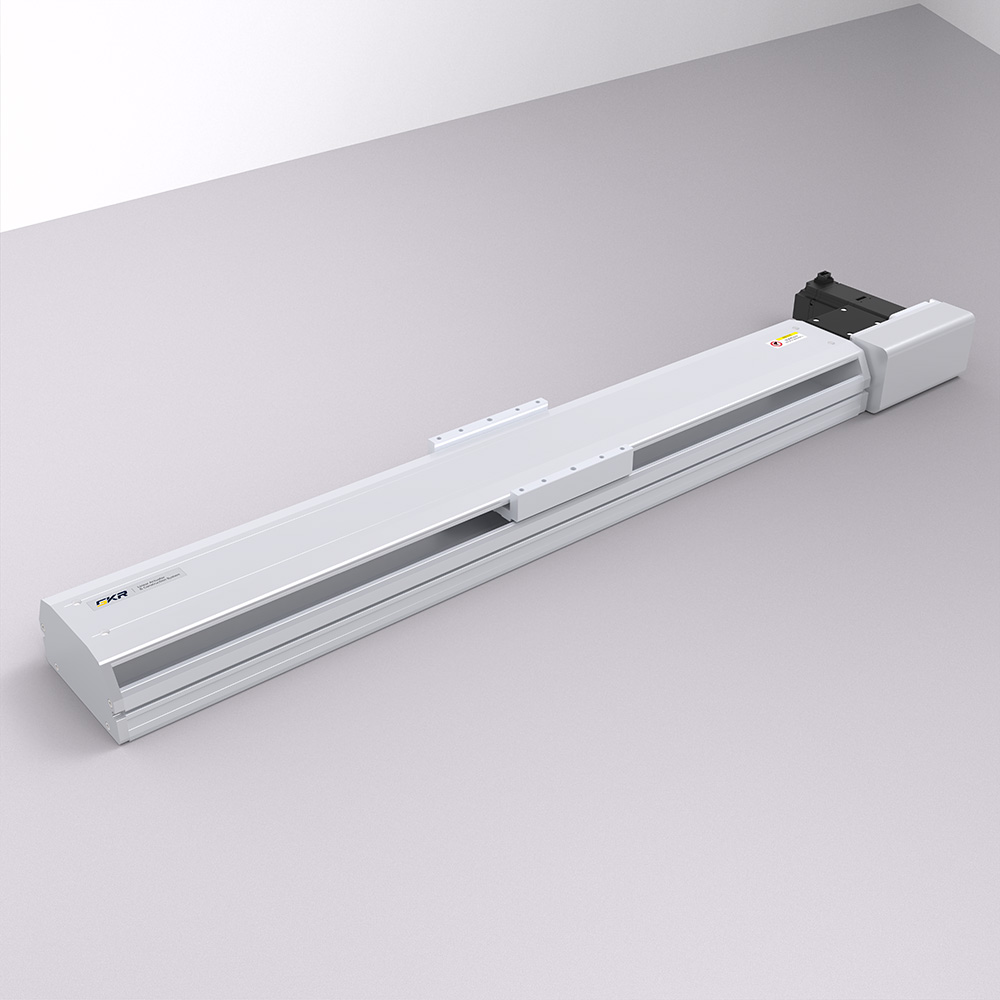

PBS140 Series, brand new synchronous belt semi-closed module
Larger-sized synchronous belt slide, NBS150 upgraded replacement model.- Repeatability±0.04mm
- Synchronous Belt Diameter20mm
- Lead40mm
- Horizontal Handling Weight35kg
- Vertical Handling WeightThis series is not supported
- Motor Connection Method

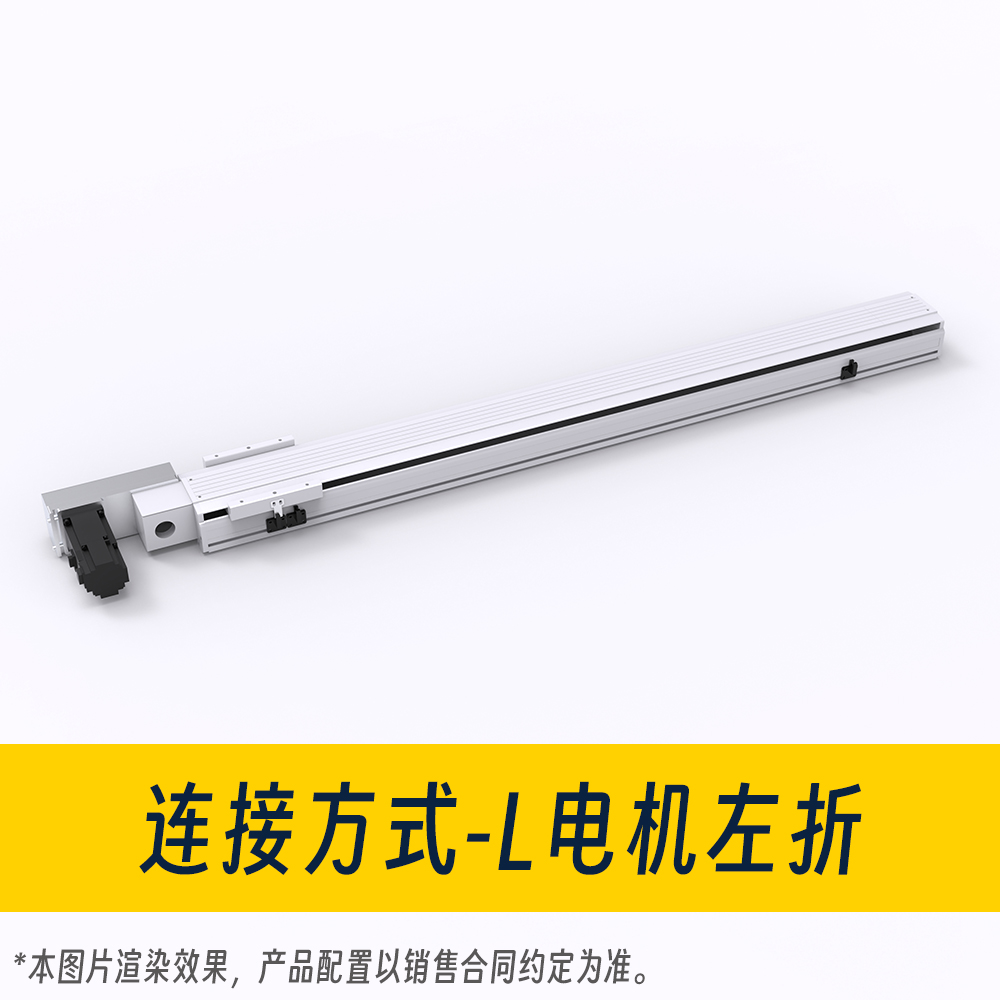

L Motor Left Bend

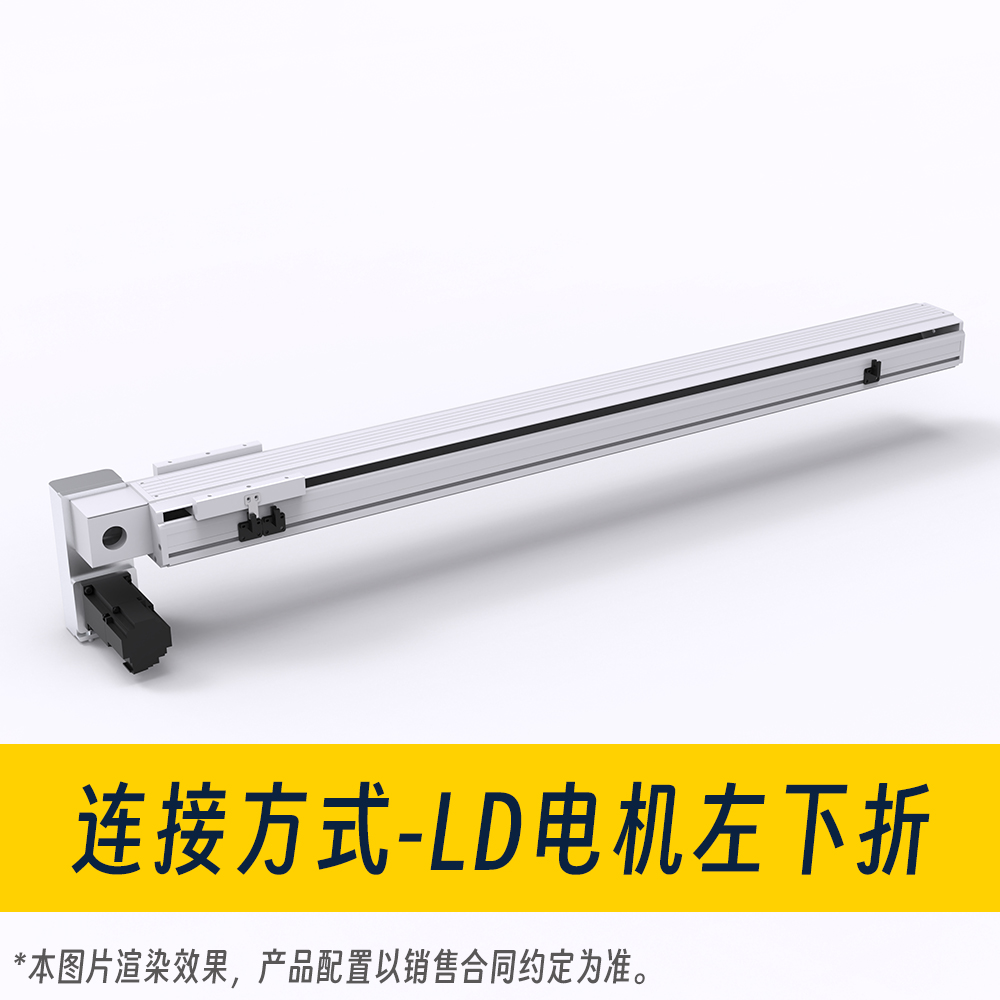

LDMotor bottom left fold

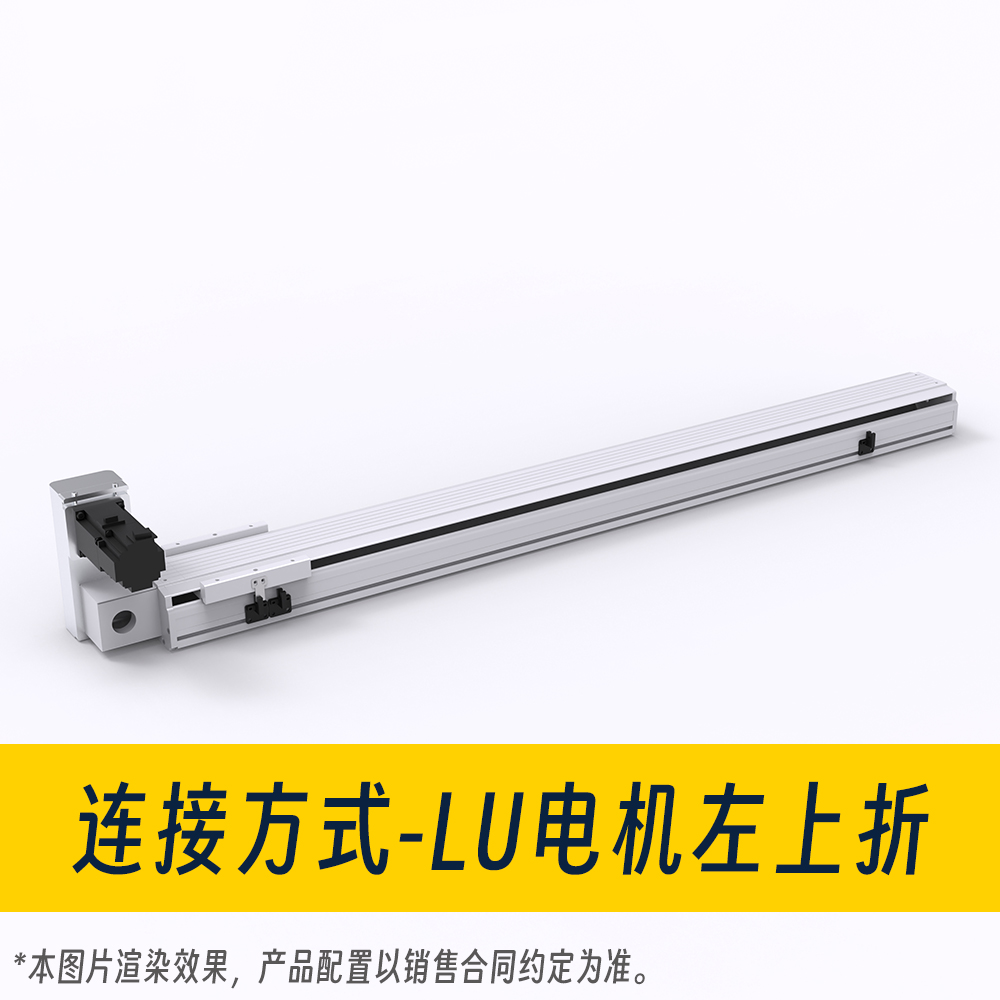

LUMotor top left fold

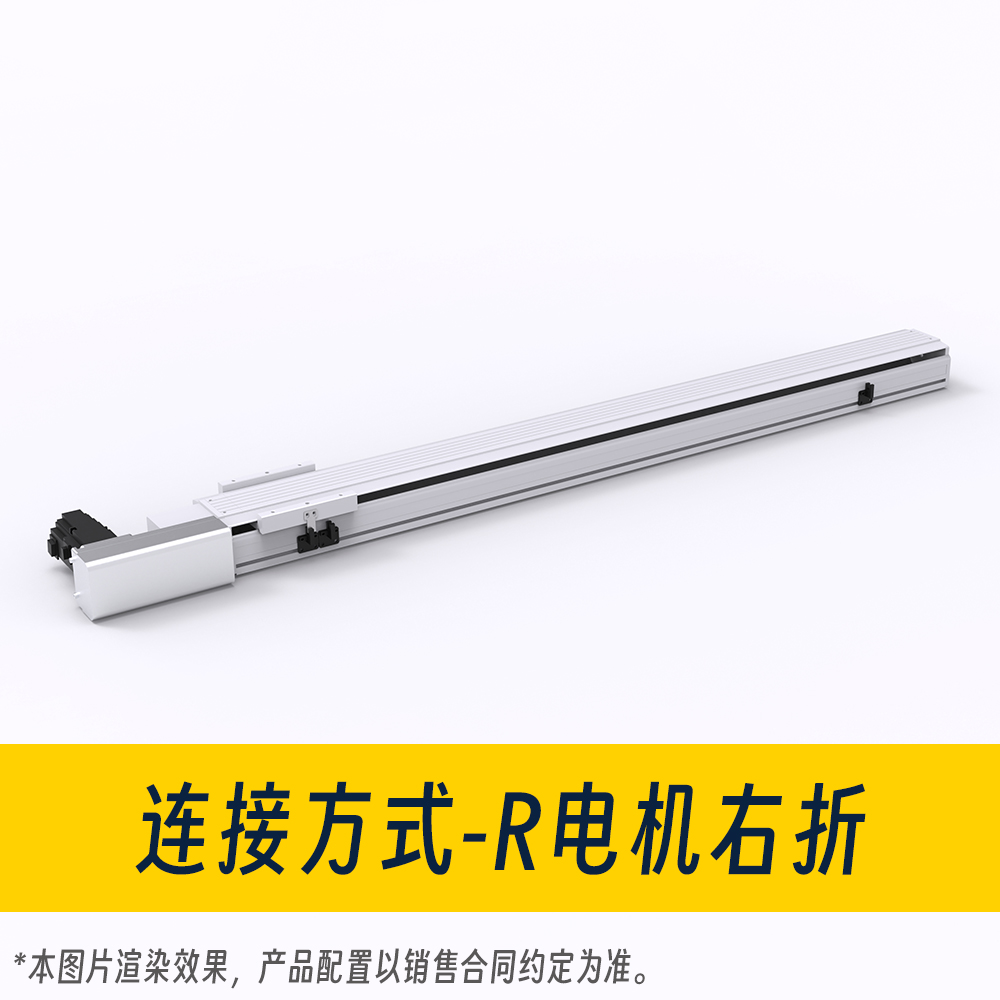

R Motor Right Bend

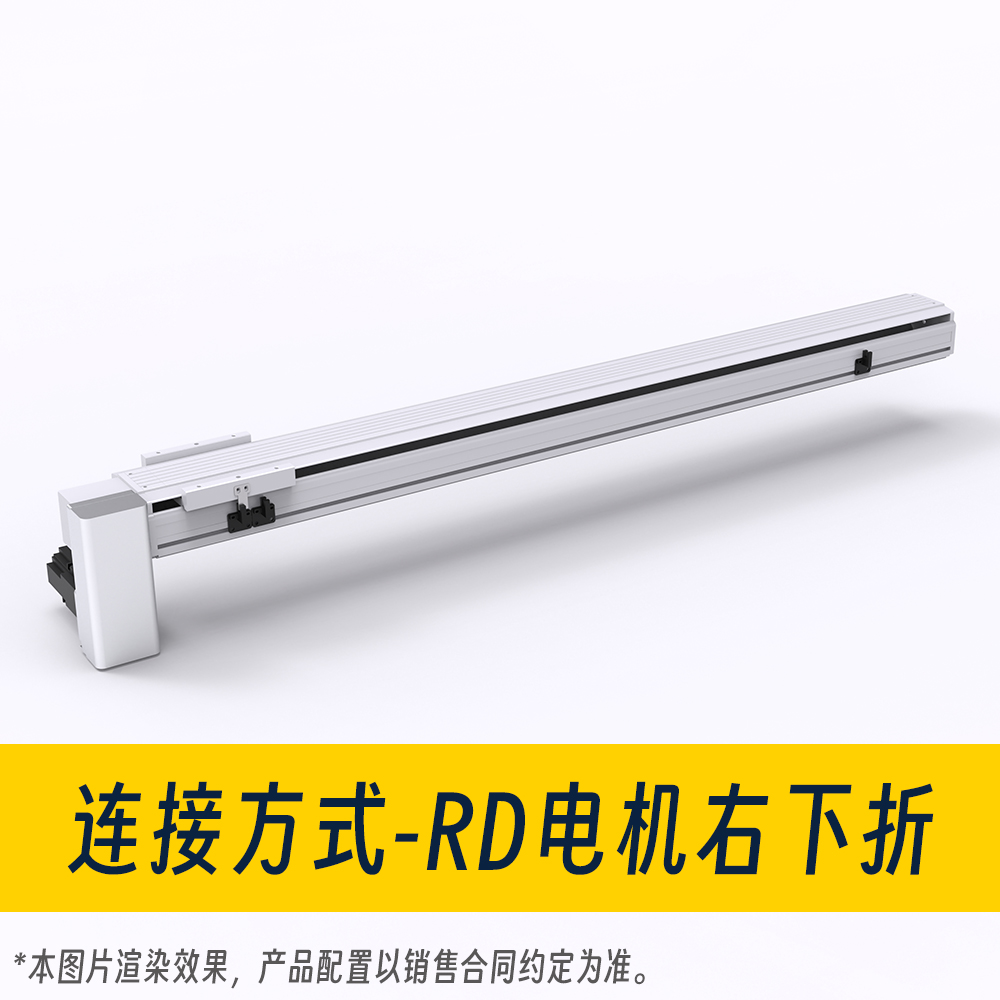

RDMotor bottom right fold

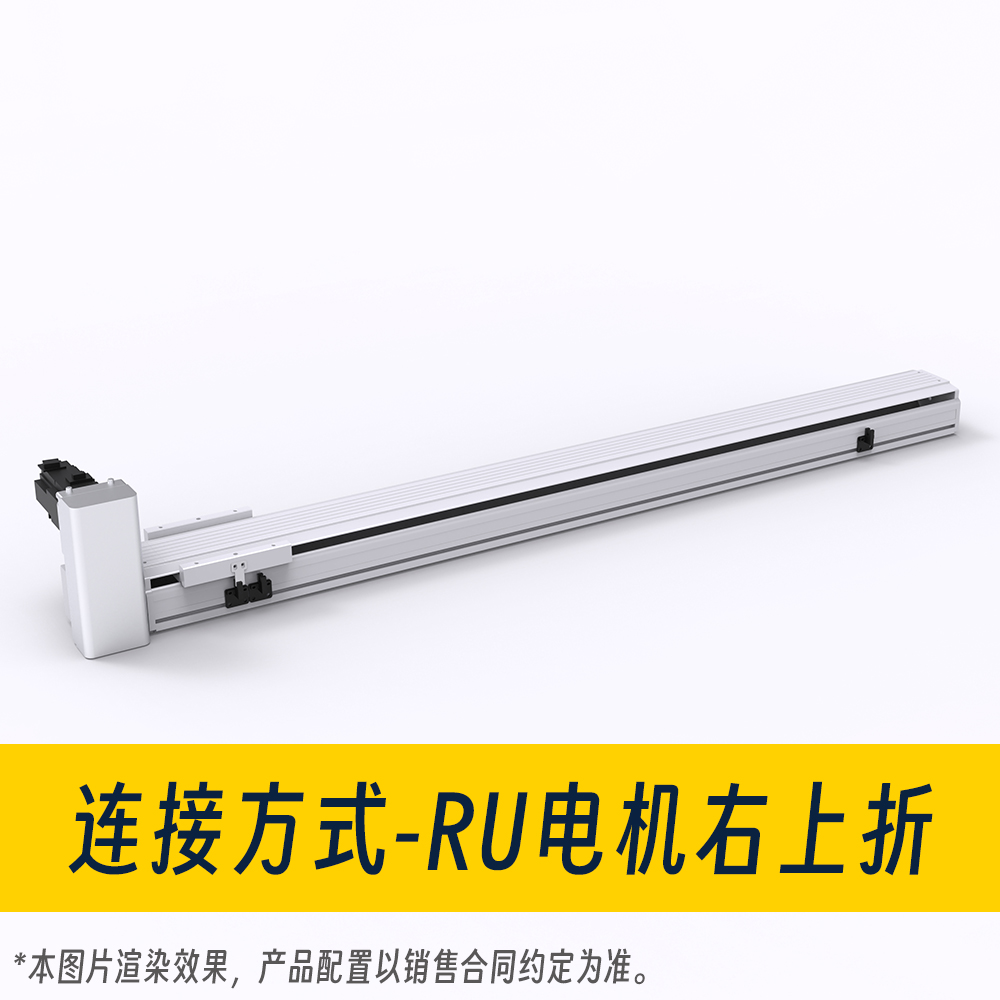

RUMotor top right fold - Linear Guide Model15×12.5-2pcs
- Body Size Reference Width:135mm， Height:78mm
- Drive Specification400W/3000r·min/1.27N·m
- Standard Stroke100~3050mm(Interval 50mm)
Product Data Download
