〔SKR〕Linear Module

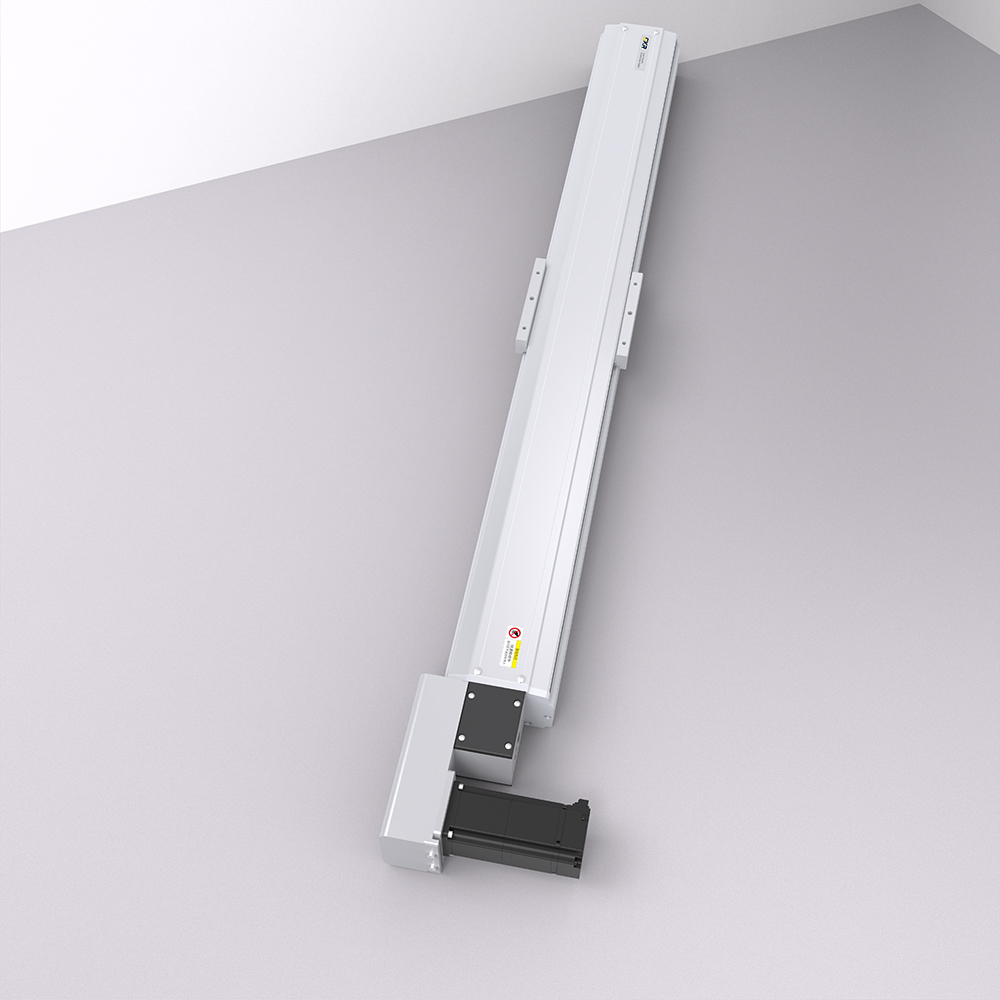

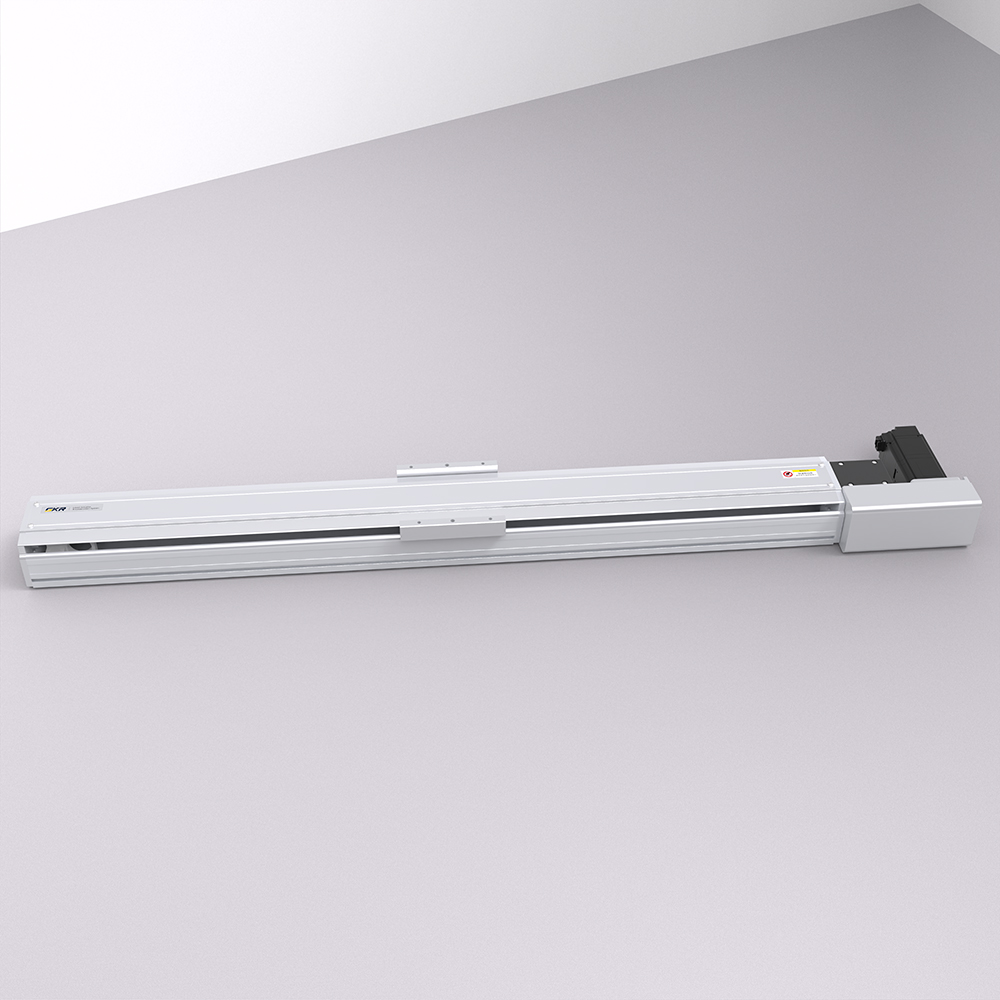

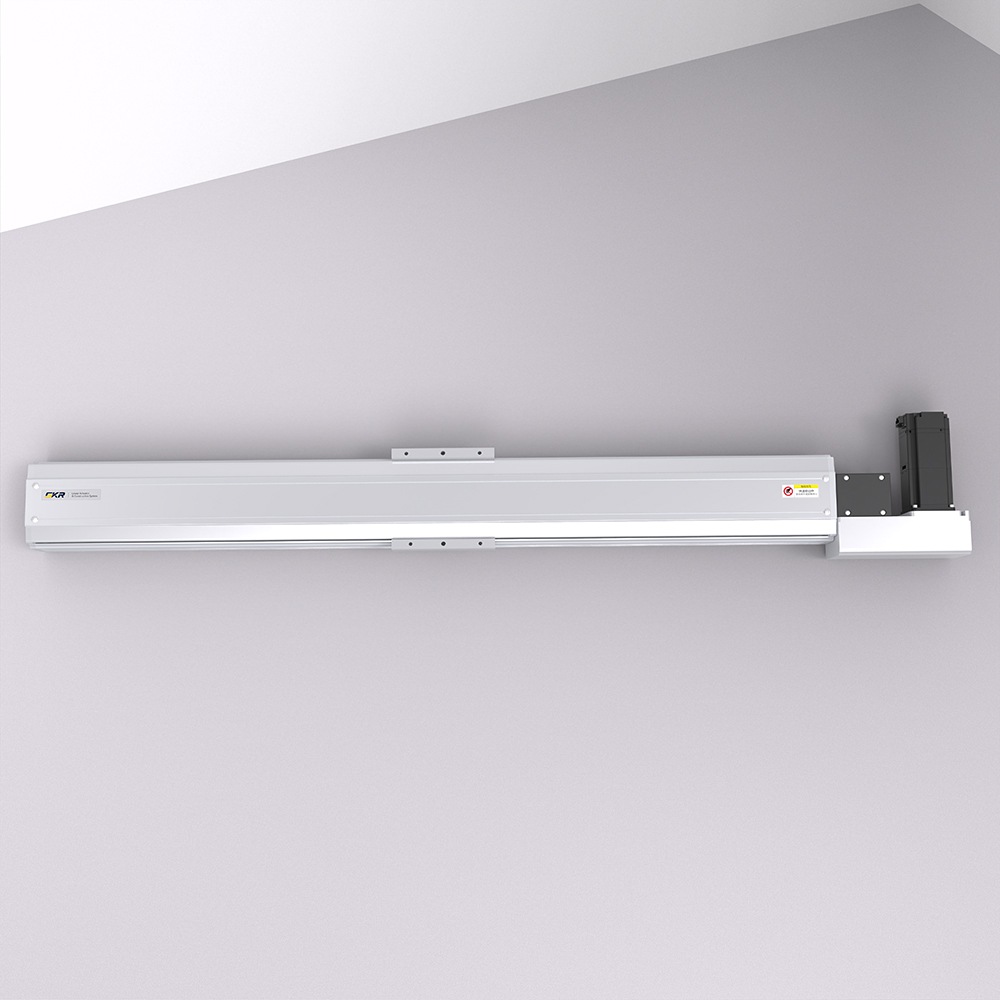

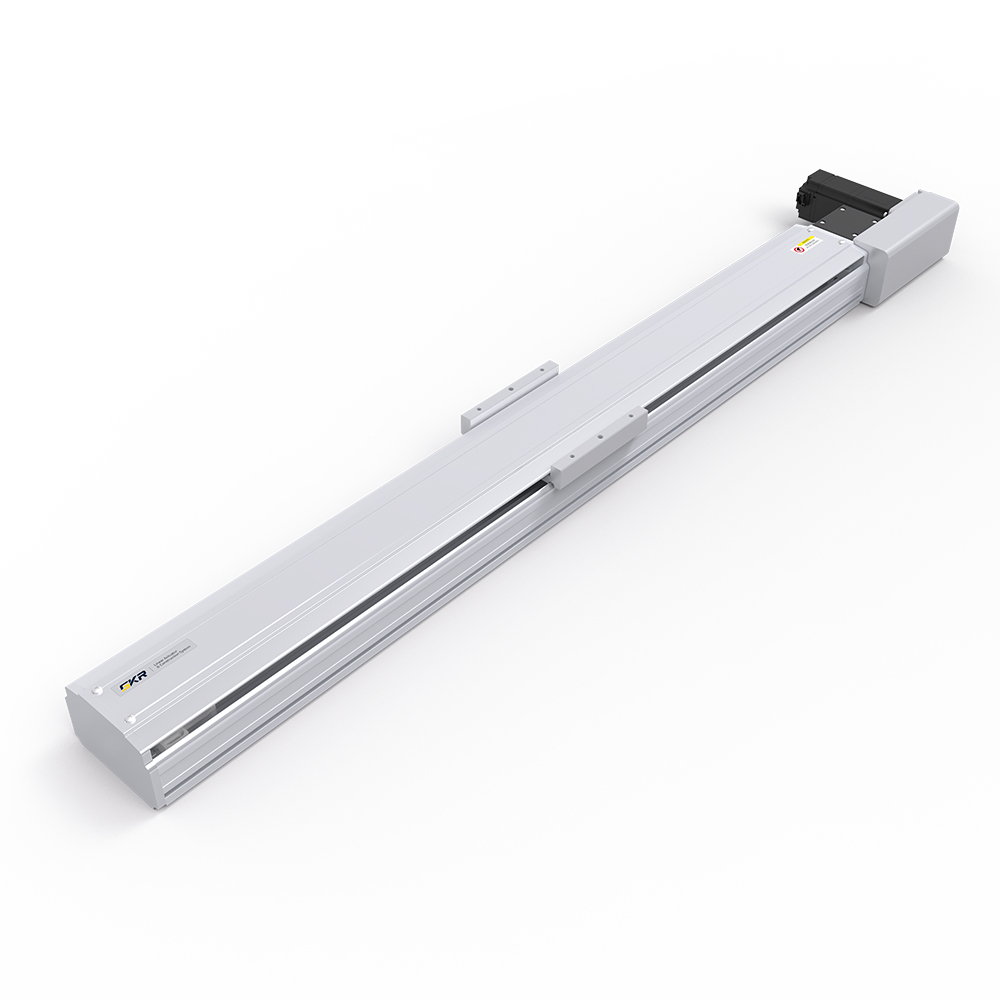

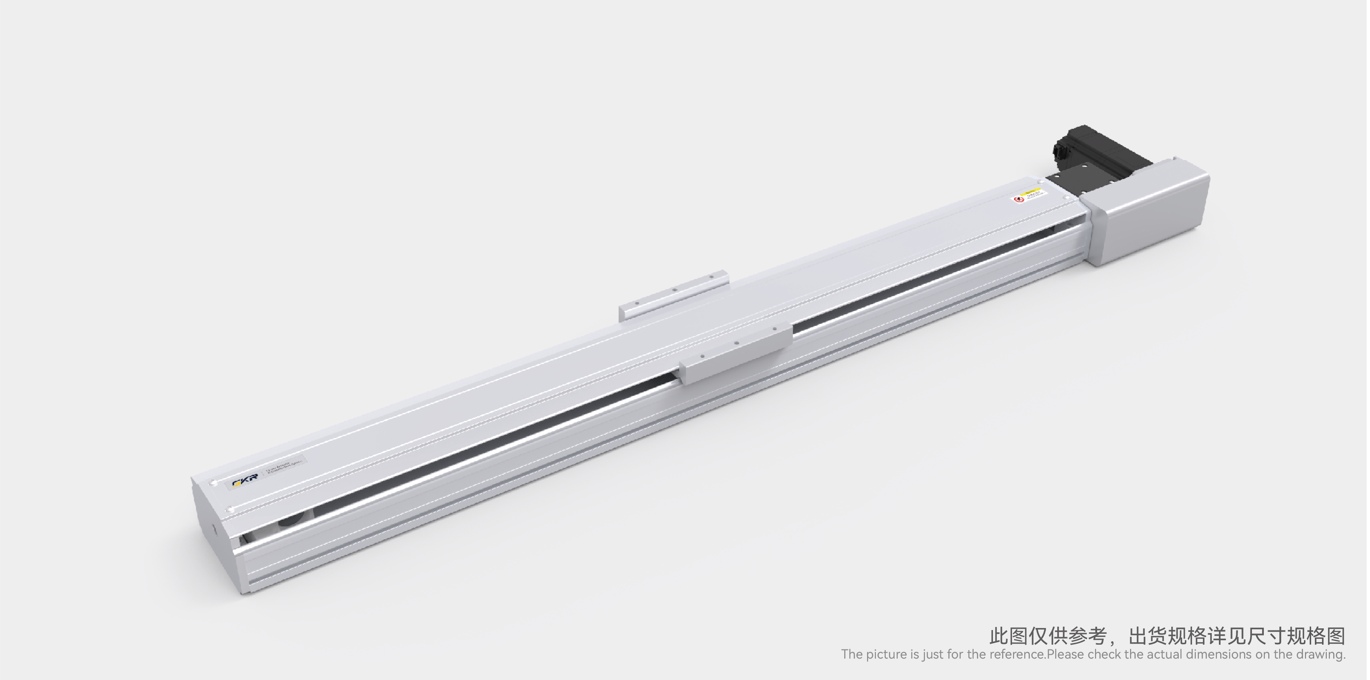

PBS120 Series, brand new synchronous belt semi-closed module

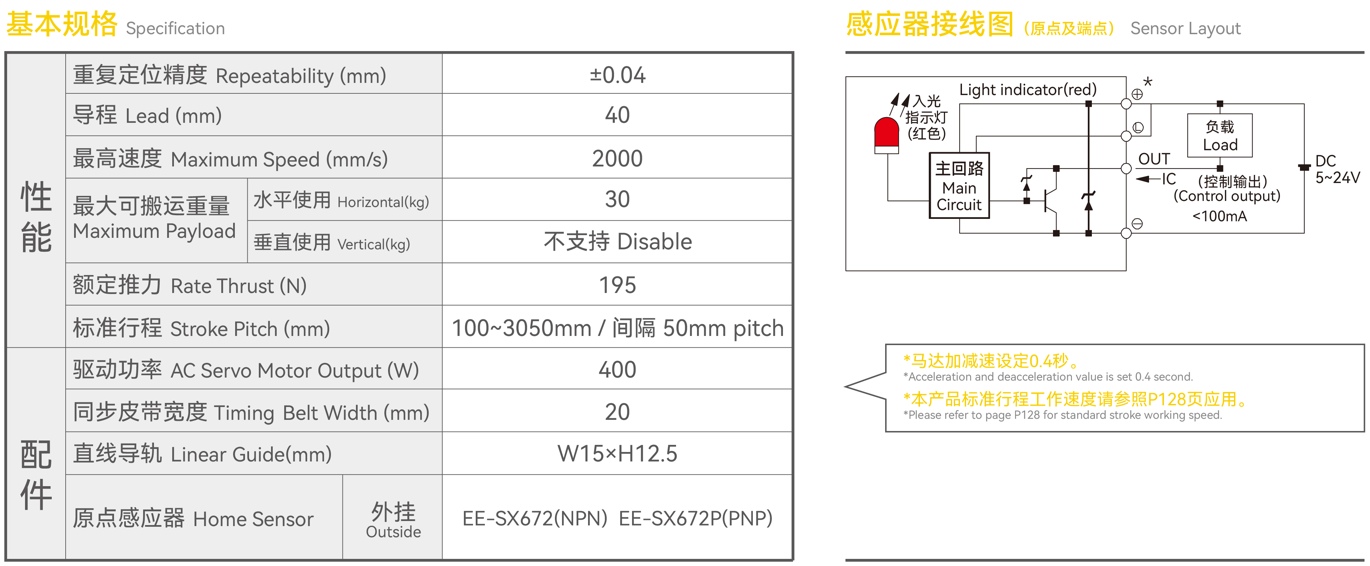

PBS Series smallest specification slide table- Repeatability±0.04mm
- Synchronous Belt Diameter20mm
- Lead50mm

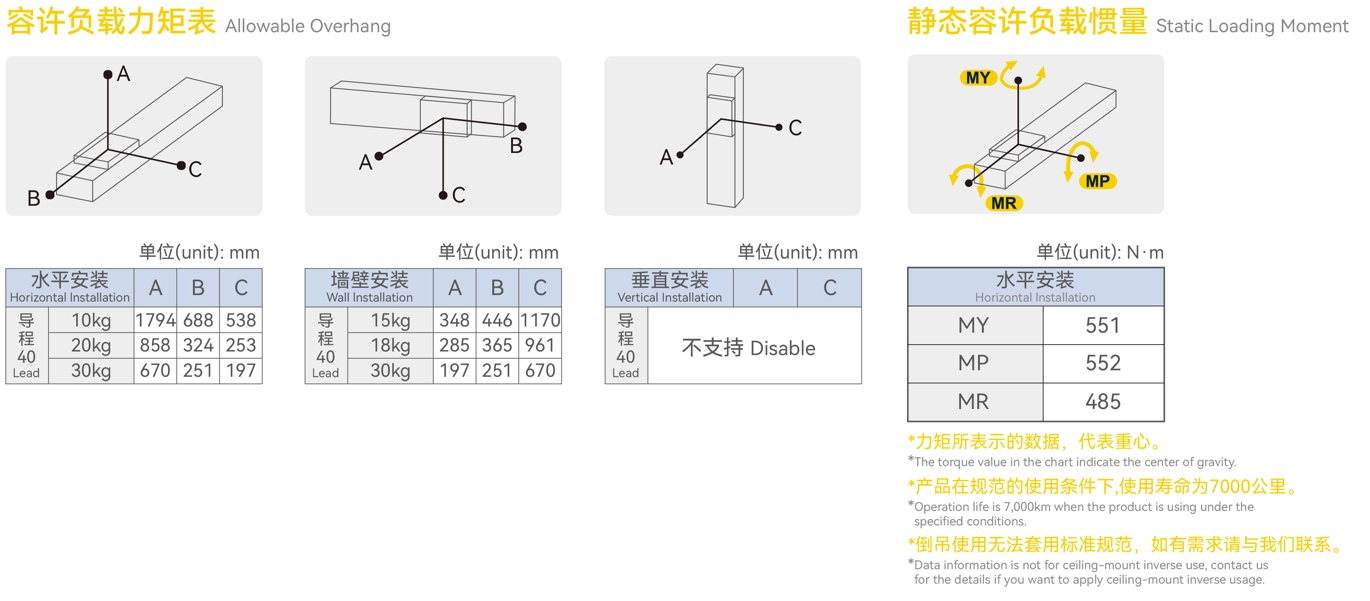

- Horizontal Handling Weight30kg
- Vertical Handling WeightThis series is not supported

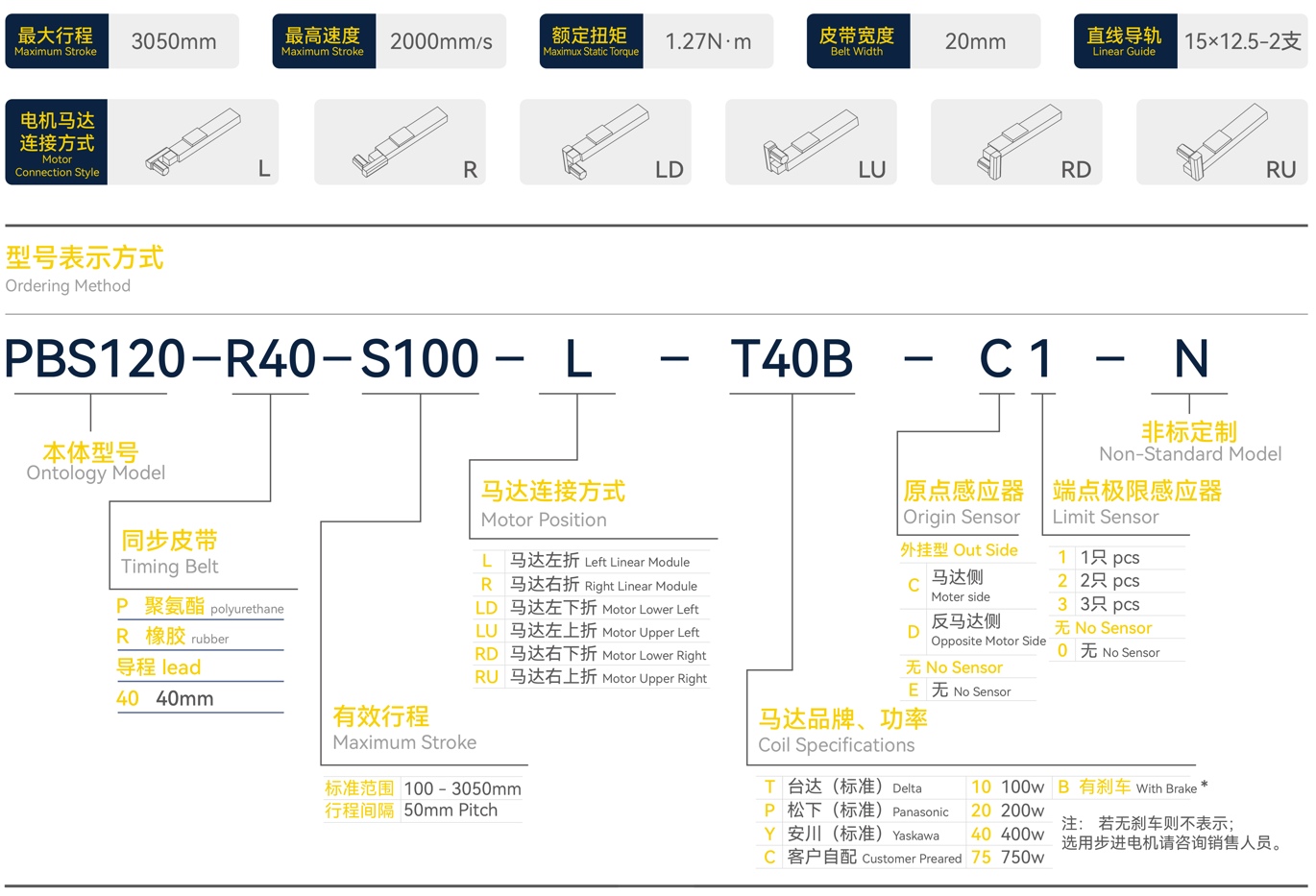

- Motor Connection Method

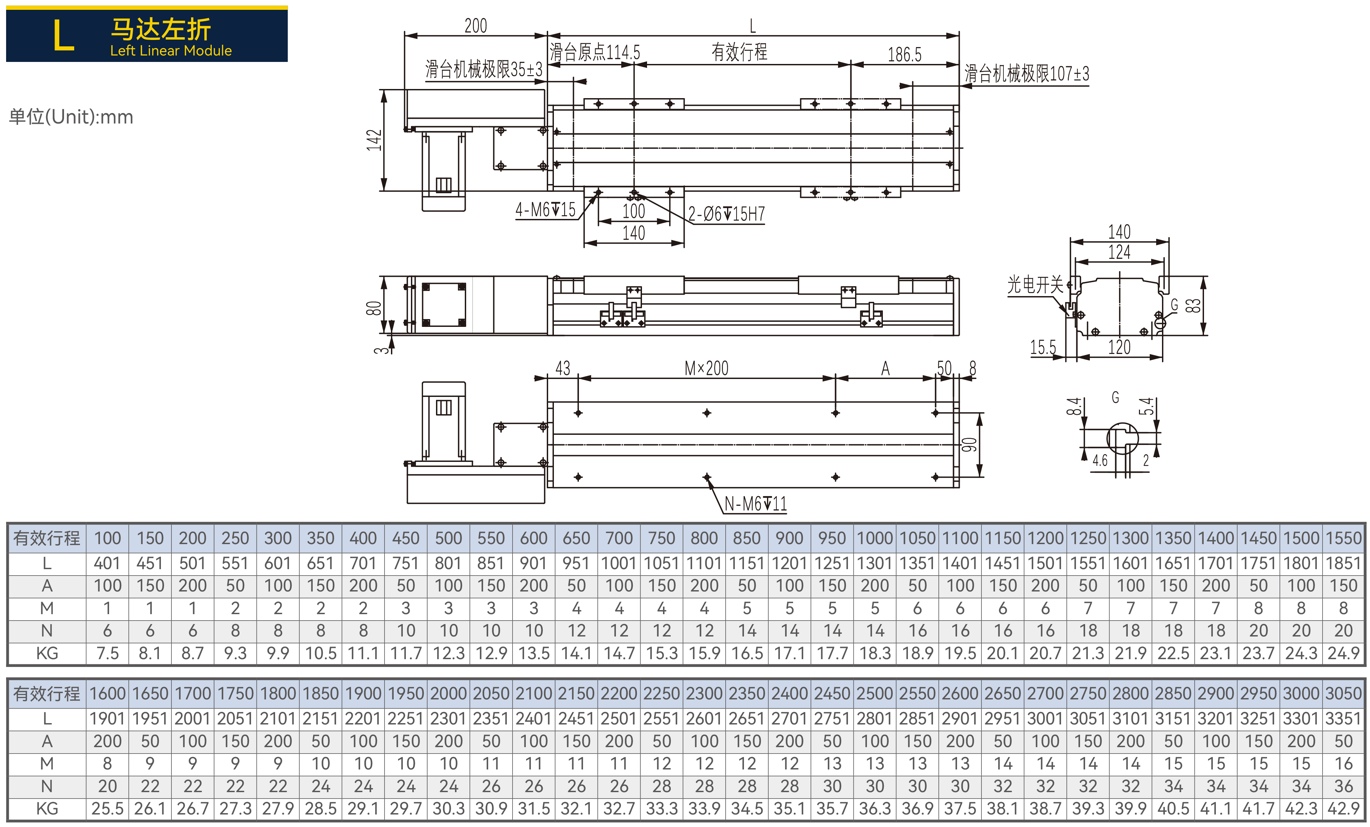

L Motor Left Bend
R Motor Left Bend
RDMotor bottom right fold
RUMotor top right fold

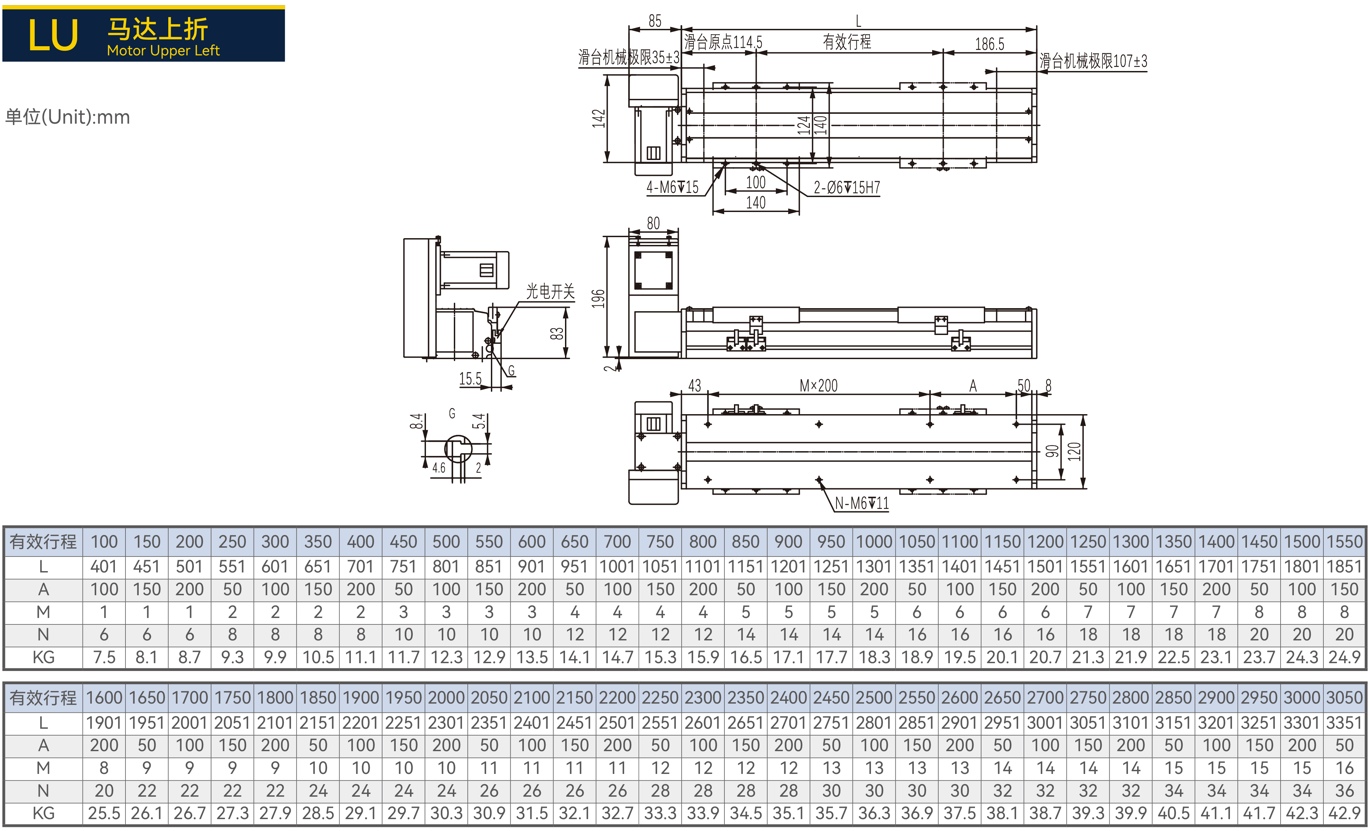

LUMotor top left fold

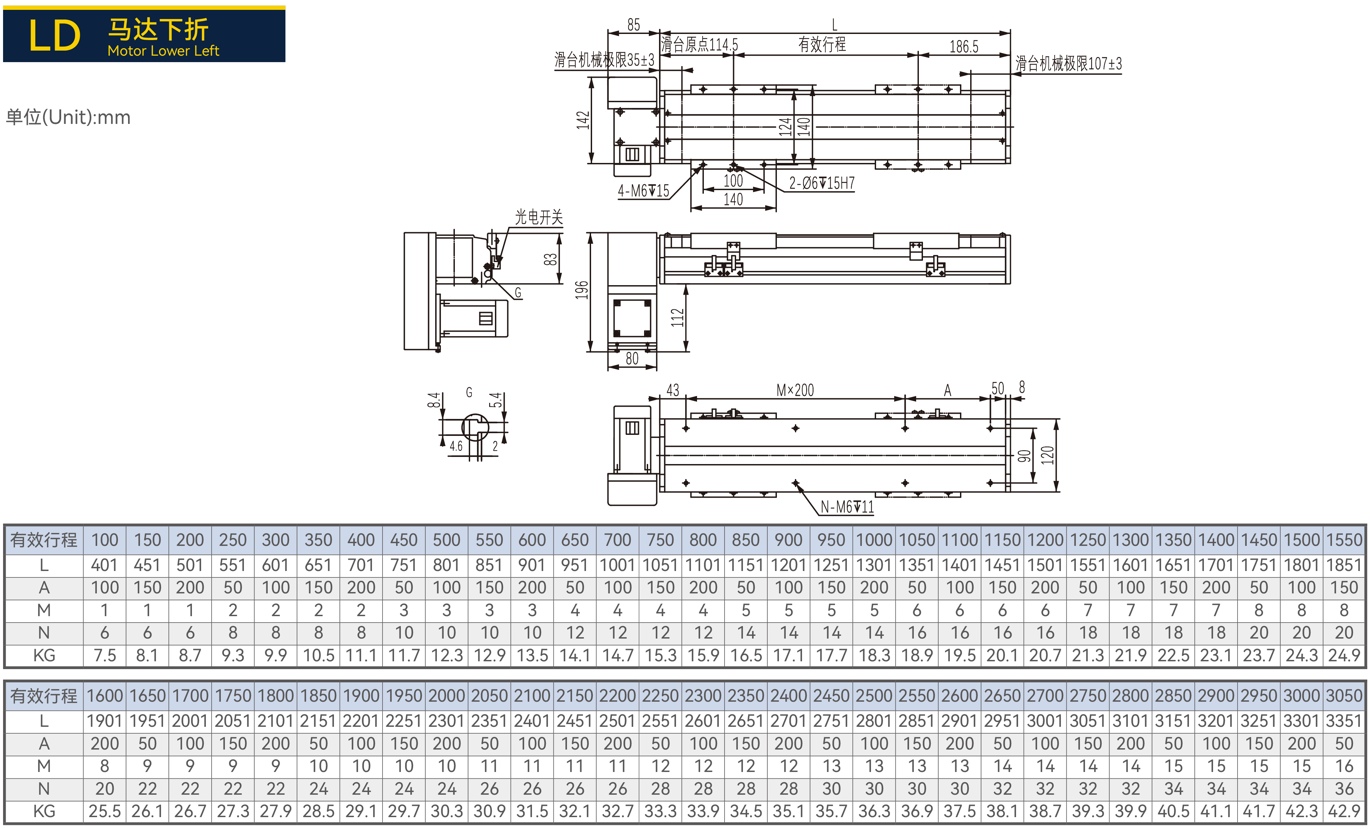

LDMotor bottom left fold - Linear Guide Model15×12.5-2pcs

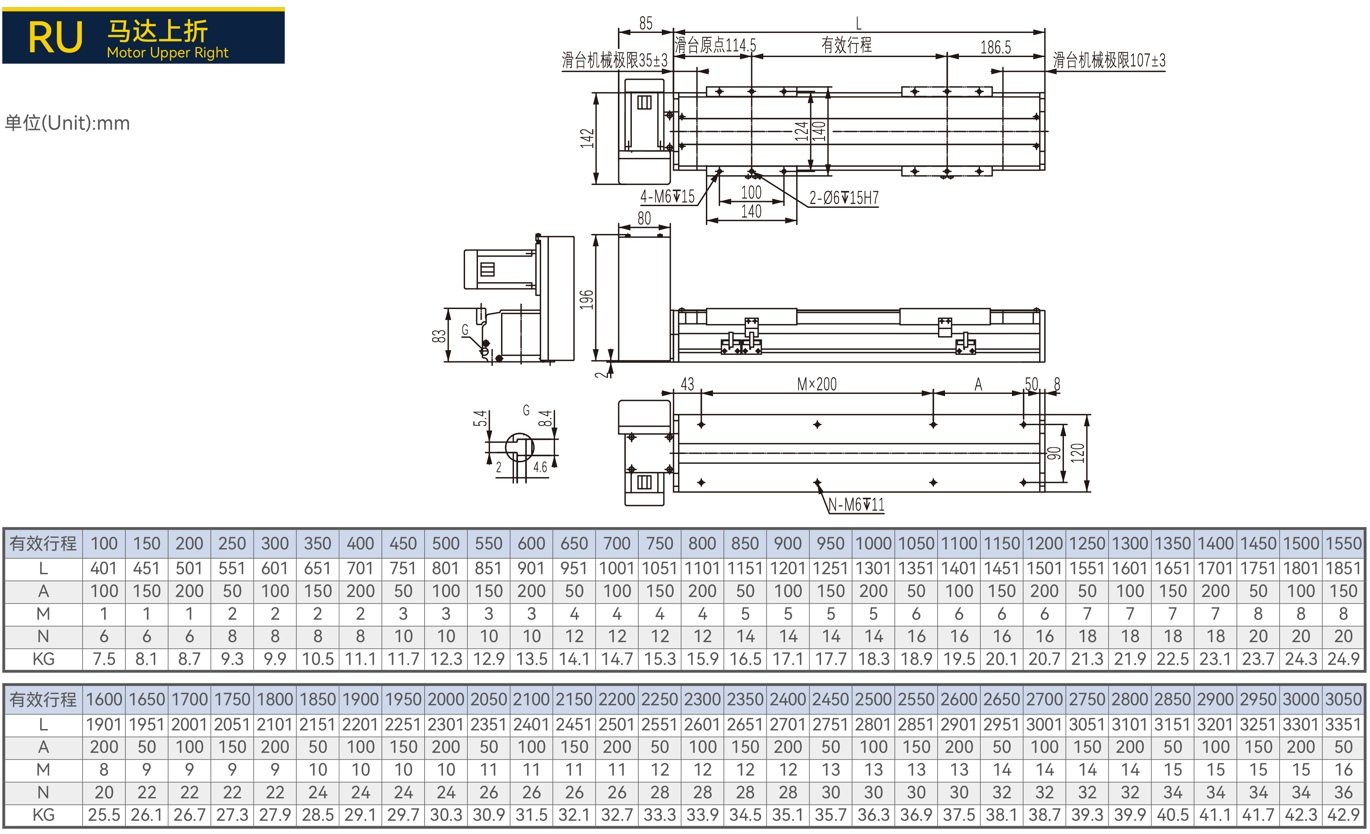

- Body Size Reference Width:120mm， Height:83mm

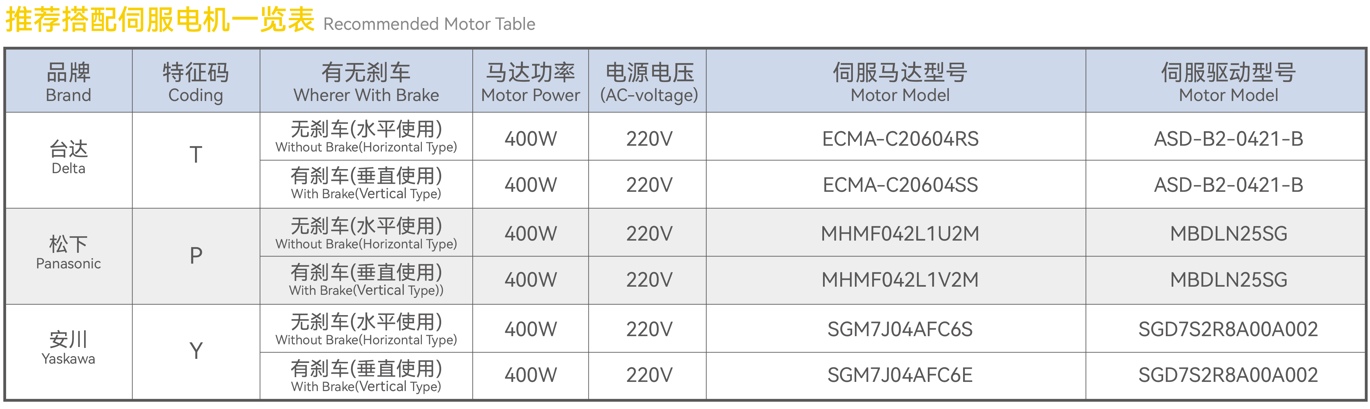

- Drive Specification400W/3000r·min/1.27N·m
- Standard Stroke100~3050mm(Interval 50mm)
Product Data Download
